BMM Weston Series 6

Bespoke large capacity, pit mounted sterilizers

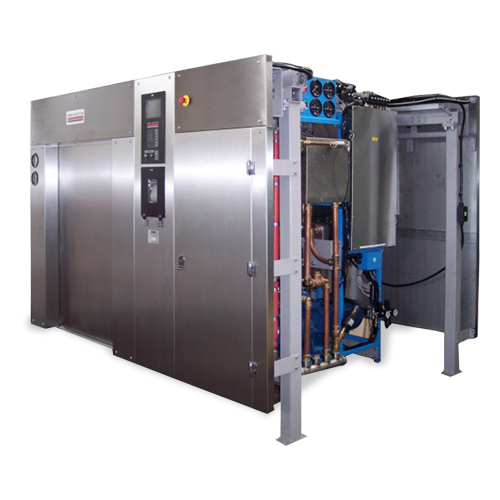

BMM Weston Bespoke large capacity- pit mounted sterilizers

Series 6 sterilizers were specifically developed to satisfy unique sterilization requirements. Whether you require a specific cycle, chamber size, loading height, jacket type or any modification entirely specific to your need BMM Weston can design a model to suit you. Machines constructed so far range from a 1132 litre (40 ft³) model to a vast 6682 litre (236 ft³) unit including full chamber jackets and modified sterilization cycles.

  • Horizontal/vertical sliding doors
  • Single & double ended
  • Choice of chamber sections

The convenient high-capacity roll-in-sterilizer for all your sterilization needs.

Finding the right sterilizer for your application is crucial.
Performance, ease of use and reliability are essential for sustaining maximum productivity.

Series 6 sterilizers are the first of our roll-in range of sterilizers.
The roll-in design eliminates the need for transferring loads between trolleys and helps reduce the time taken to process large volumes of work.

This unit is also available as a floor mounted unit, where a pit mounted option is not available.

Available in single and double ended versions and boasting capacities of 6600 litres the Series 6 is a popular choice and is available in Porous Load and Laboratory models

Features
The Series 6 range comprises single or double-ended models with door widths of 900 – 1200mm and chamber heights of 1600 – 2200mm.
The range includes models configurable for all these applications:

Porous Load
Media
Sealed & unsealed liquids
Discard, fluid, plastic & mixed
Fabrics
Instruments
Glassware & plastic ware
Pipette tips

Standard Compliant
As with all BMM Weston sterilizers, Series 6 units are designed and built by the company in the UK to the most stringent requirements.
We operate to ISO9001:2000 plus GAMP and our machines comply with all relevant European and British product standards BS3970, PD5500 and NHS guidelines including C14, HTM 2010 and EN285

Loading equipment
BMM Weston can provide various loading equipment solutions to suit your requirements.

Configurable cycles
With Series 6, cycles can be configured using discrete cycle stages, with each stage performing a separate function.

Users can also programme parameters to control each function within pre-defined limits and set warnings and fault conditions to parameters if specified limits are exceeded.

Main features include colour LCD touch-screen systems for easy input and reading of data, automatic sliding doors for fast loading and castors for easy manoeuvring.
Various options can also be fitted – please discuss for details.

Large 10.4” touch sensitive colour LCD
Capable of showing 25 lines of text in 40column mode for easy-to-read cycle data display including time, temperatures, pressure, stages and fault messages.
Screen save option when sterilizer not in use.
Special menus available for:

Supervisor
Maintenance
Validation
Cycle log store
Machine configuration

Control panel
The ergonomically designed Series 6 control panel incorporates the folowing user-friendly controls and functions:

Screen – printed control panel
10.4” touch sensitive colour screen
Thermal printer
Power on/off
Door operation
Door locked indicator
Stop button
Reset

Access codes
All menus, cycle selection and end of cycle authorisations are protected by codes to prevent unauthorised use.

Codes available are:
Operator
Senior operator
Supervisor
Maintenance
Validation
Root

Key features

Chamber
Rectangular section in 316L stainless steel

Steam Jacket
For improved drying and heat retention

Water Jacket Cooling System
To accelerate cooling

Insulation
For maximum energy conservation

Automatic Powered Door
Pneumatic, horizontal sliding

Pressurised Door Seal
Pressure operate floating gasket for a perfect seal

Visual Display Unit
A large 10.4″ TFTcolour VDU

Multiple Cycles
Up to 20 configurable cycles

Access Codes
Menus protected forauthorised personnel

Data Log Store
Internal memory storage

Printer
40-column printer

Pneumatic Valves
Delivering improved reliability and performance

Load Probe
Provides optional control of sterilizing stage

Water Conservation
Water is recirulated at temperature to reduce water usage

Water Discharge Control
Ensuring discharge is kept below 70°C

Panelling
St St fascia panels and Access doors are available.

Leak Rate Test
Standard and TimeSet programs
