Only the best for your practice innovative products from MELAG
The growing number of infectious diseases in our globalized context poses an ever-increasing threat to people´s health. Health authorities and hygiene experts are setting ever-higher standards for all those employed in the health-care sector, which in turn places ever-increasing financial burdens on medical and dental practices in a time of reduced income and increased competition. We see it as our task to provide efficient, cost-saving devices which satisfy these increased standards. The new autoclaves of the Premium-Plus-Class save time in the treatment of instruments and performing the various documentation and traceability operations. Not just this – they revolutionize the mood in the treatment room. See for yourself.
Touch me
This display is unique
Autoclave operation needs to be simple, error-free and fun. The intuitive operation of the autoclave using an extra-large colour-touch-display enables quick program selection, options settings, individualization of the display colour and much more. This display is unique, providing as it does, the world’s largest colour-touch-display to be found in a large-scale production practice autoclave.
The menu for selecting the sterilization programs
The sterilization run is displayed in a clear and easy-to-read fashion.
Twin Chamber: technology of a special kind
All Premium-Plus-Class autoclaves come fitted with a highquality, double-wall sterilization chamber as used in the large hospital-based autoclaves. Whilst the sterilization chambers of conventional practice autoclaves are pre-heated via an electric jacket-heating mechanism, where as the new Premium-PlusClass autoclaves use the sterilization stream for this porpose as well. This effective procedure brings considerable advantages for practice operation, saving time and optimizing energy efficiency, all with the best-possible sterilization results.
High-quality sterilization
Our high-quality sterilization is the result of the combination of a high-performance vacuum system and best-quality steam. The twin chamber technology used in the Premium-Plus-Class enables quick air evacuation from the sterilization chamber, sterilization packaging and instrument cavities. At the same time, the air is evacuated from the steam very effectively. This saves further time and extends the life-expectancy of your vacuum pump.
Operation with the external Flex-Display/
If the clearance between wall cupboards and the work surface supporting the autoclave is less than 55 cm, the autoclave display could obstruct the cupboard doors. This can be remedied using the new Flex Display, with an elegant bracket for wall or work-surface mounting.
Operation with the external Flex-Display
If the clearance between wall cupboards and the work surface supporting the autoclave is less than 55 cm, the autoclave display could obstruct the cupboard doors. This can be remedied using the new Flex Display, with an elegant bracket for wall or work-surface mounting.
Speed me up
Waiting for instruments is a thing of the past
The record sterilization times established by our new models needs to be seen to be believed: 17 minutes in Quick-Program “B” for the sterilization of wrapped instruments. 10 minutes in Quick-Program “S” for the sterilization of unwrapped instruments. Both times include fractionated pre-vacuum and drying.
A full load (up to 7 kg of instruments) can also be sterilized in the Universal-Program within 30 minutes. These operating times stand up to any comparison.
The Premium-Plus-Class Choose between four designs!
The four autoclaves of the Premium-Plus-Class are extremely similar. Their only visible difference consists in the name on the door, the different chamber depths and an opening to the water container.
Did you know: to protect your instruments, all of our autoclaves are equipped not only with high-performance temperature sensors, but an integrated water-quality measurement system which issues warnings before poor-quality water is used.

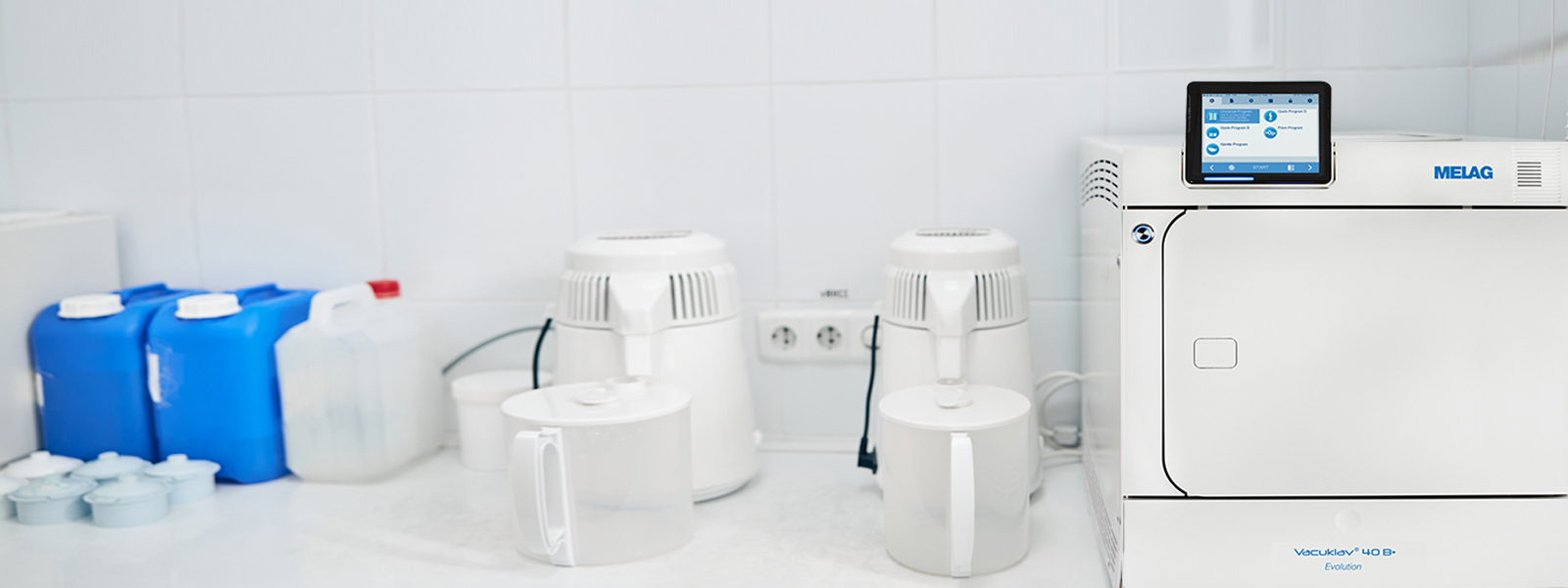

Vacuklav and MELAdem: protecting instruments while saving time and money
Save time and money – no need to purchase, transport, store and fill distilled water. Instead, just attach your Vacuklav to the
water treatment unit MELAdem 40 or MELAdem 47. If your autoclave is located close to a water supply and outflow, you can take advantage not only of automatic filling and dosage,but also automatic demineralized water outflow. MELAdem 40 works according the ion exchange principle; MELAdem 47 employs the reverse osmosis principle. MELAdem 47 is especially suited to operations requiring large quantities of demineralized
water, e.g. a high number of sterilization procedures in a single day
Documentation can be so easy
Many practice workers see documentation as a necessary but unpleasant task. The new operating concept and the large colourtouch-display enable a documentation procedure which saves time and is fun to use.
Individual and multiple output
media can be selected very easily
View the log on the display
A Menu to select individual or multiple logs
Premium-Plus-Class autoclaves represent a modern system catering for the needs of every practice, including documentation via your practice network, the Ethernet system interface and barcode label printing up to log issue on the CF card or the MELAprint 42 log printer.
Effective use of energy
The contribution of intelligent systems to time saving and environment protection
Documentation can be so easy
Many practice workers see documentation as a necessary but unpleasant task. The new operating concept and the large colourtouch-display enable a documentation procedure which saves time and is fun to use.
The settings in the energy-saving mode
Time pre-selection for automatic autoclave start
As a family-owned company taking a long-term perspective, MELAG has a long record of environmental responsibility and resource-conservation. Our development and production operations always aim to conserve energy. Our Premium-Plus-Class autoclaves are all fitted with an energy-saving mode, enabling automatic reduction of the stand-by temperature in the pause times set by the operator. The pre-selection of the automatic start time (e.g. tomorrow morning) also saves time and energy
Safety made easy
Quality assurance via instrument tracing
Traceability of the instruments used on the patient right back to the sterilization run has yet to become a legal requirement. Nevertheless, it already represents an important feature of practice-based quality assurance. Our Premium-Plus-Class autoclaves enable instrument traceability within a matter of seconds; and that without additional computer technology or special software
Did you know: You can set individual PINs for each operator in the feature “user administration.” You can also determine a series of questions to be asked, e.g. whether an indicator has been successful. Following the end of a sterilization procedure, you can clear the batch and print the required number of labels appropriate to the number of sterilization packages. During patient treatment, scan the labels with a hand scanner and connect the treatment with the instrument used. It is so simple!
Individual operator PINs
Selecting the number of labels and maximum storage period
Accessories for every application!
Autoclaves need not just to be quick, but also economical. Autoclaves of the Premium-Plus-Class can sterilize up to 6 standard trays or 4 standard tray cassettes simultaneously. We provide a number of mounts for this purpose. The autoclave scope of delivery includes one mount. The mount >C< is especially versatile as it can be used both for trays as well as standard tray cassettes (upon rotating the mount 90°).
Sterilization containers with paper filters provide a further method of sterilization with contamination-protected storage.
Programs, times and technical information
| Program cylce times | Universal-Program Holding time: 5,5 min |
Quick-Program B* Holding time: 3,5 min |
Quick-Program S** Holding time: 3,5 min |
Gentle-Program Holding time: 20,5 min |
Prion-Program Holding time: 20 min |
|---|---|---|---|---|---|
| Vacuklav 40 B+ | |||||
| Up to 6 kg instruments | – | 8 – 11 | 29 – 40 | 30 – 38 | |
| Up to 2 kg textiles | 22 | 11 – 12 | – | 37 | 37 |
| Vacuklav 41 B+ | |||||
| Up to 6 kg instruments | 15 – 26 | – | 8 – 12 | 20 – 41 | 41 30 – 40 |
| Up to 2 kg textiles | 26 | 12 – 17 | – | 39 | 40 |
| Vacuklav 43 B+ | |||||
| Up to 7 kg instruments | 18 – 27 | – | 8 – 13 | 30 – 45 | 31 – 43 |
| Up to 2.5 kg textiles | 27 | 21 | – | 43 | 43 |
| Vacuklav 44 B+ | |||||
| Up to 7 kg instruments | 15 – 24 | – | 8 – 13 | 30 – 43 | 31 – 42 |
| Up to 2.5 kg textiles | 26 | 20 | – | 41 | 42 |
| Drying time | 15 | 6 | 2 | 15 | 15 |
| Technical Data | Vacuklav 40 B+ Tap Water connection |
Vacuklav 41 B+ „stand alone“ |
Vacuklav 43 B+ „stand alone“ |
Vacuklav 44 B+ Tap Water connection |
|
|---|---|---|---|---|---|
| Chamber size / Volume | Ø 25 cm x 35 cm length / 18 litres | Ø 25 cm x 45 cm length / 22 litres | |||
| Load | 6 kg instruments / 2 kg textiles | 7 kg instruments / 2.5 kg textiles | |||
| Dimensions (WxHxD) | 46 cm x 50 cm x 55 cm Height incl. display: 56 cm Device feet fit on 50 cm table plate |
46 cm x 50 cm x 68 cm Height incl. display: 56 cm Device feet fit on 60cm table plate |
|||
| Weight | 57 kg | 59 kg | 66 kg | 59 kg | |
| Mains supply | 220 – 240V / 50 – 60 Hz / 3,400 W | ||||
