Mobile soundproofed compressor units

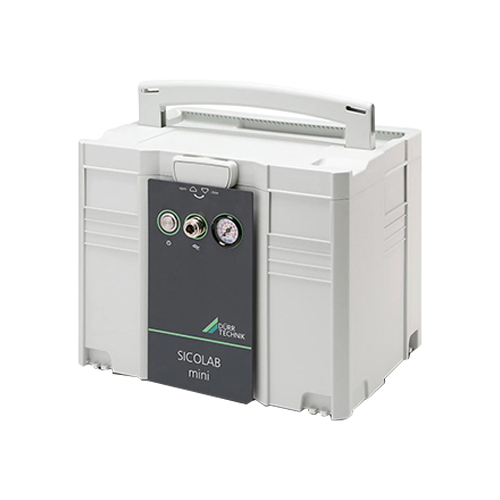

SICOLAB mini complements the sound-insulated SICOLAB series from Dürr Technik. The successor to the “Silent Air System” convinces with modern design and 30% better performance owing to an optimized intake control. SICOLAB mini has been developed espescially for the laboratory sector – avoiding any disturbance of accustomed processes and ones concentration. Another advantage is the easy operation by plug-and-play. All control elements are easily adjustable from the front. This allows easy positioning on the workplace. The SICOLAB mini is an oil-free compressor unit with integrated carrying handle and offers maximum flexibility with minimal maintenance.

Mobile soundproofed compressor units

SICOLAB mini complements the sound-insulated SICOLAB series from Dürr Technik. The successor to the “Silent Air System” convinces with modern design and 30% better performance owing to an optimized intake control. SICOLAB mini has been developed espescially for the laboratory sector – avoiding any disturbance of accustomed processes and ones concentration. Another advantage is the easy operation by plug-and-play. All control elements are easily adjustable from the front. This allows easy positioning on the workplace. The SICOLAB mini is an oil-free compressor unit with integrated carrying handle and offers maximum flexibility with minimal maintenance.

SICOLAB mini is available in voltage version 230 V and 50 Hz and 115 V with 60 Hz. Furthermore, this model will be obtainable for drying of endoscopes as a SICOLAB mini ENDO version.

Due to the very compact dimensions of only 396 x 347 x 320 mm this unit can be fitted even in narrow rooms. A carrying handle as well as an optional trolley guarantee comfortable mobility. A power plug (230 V 1~) ensures an easy Plug-and-Play and a quick coupling for the compressed air connection direct at the housing. The oil-free compressors are maintenance-free (except of a filter exchange). Thus there are no service costs, making them economically attractive.

SICOLAB mini is supplied as standard with a 2 l pressure receiver, automatic condensate drain, electromagnetic starting-up relief and an operating hours meter for a safe start-up. As compressors the aggregate type A-025, A-038 and A-062 are used.

  • Approx. 30% more performance and faster tank filling in comparison to previous model SAS
  • Easy operation

  • Silent start-up

  • Convenient mobility with the built-in handle or with the optional trolley
  • 100 % continuous operation up to 40 °C ambient temperature

  • Internally coated air receiver

  • Automatic condensate drain

  • Pressure switch

  • Safety valve

  • Low weight

  • Modern design

  • Maintenance-free compressor – except filter exchange

  • Plug-and-play by connection cable/power supply (230 V)

  • Extremely low noise level, as low as a refrigerator one meter away
  • Compressed air connection by quick release coupling direct in the housing

  • Oil-free compressor aggregate

  • Pressure regulator

  • Electromagnetic start-up relief

  • Front mounted pressure gauge for convenience

  • On/off switch with fuse

  • Low weight

  • Operating hours meter

Technical data

Type Free air flow at 5 bar Noise level Motor input Current consumption Voltage Frequency Protection Class Weight Dimensions
(l/min) PN dB (A) P1 (kW) (A) (V) (Hz) (IP) (kg) L x W x H (mm)
SICOLAB 025 mini 10 49 0,24 1,1 230 50 IP20 14 396x321x295
SICOLAB 025 mini 0.35 49 0.24 1.1 230 50 IP20 30.9 15.6×12.6×11.6
SICOLAB 025 mini 12 49 0,27 1,3 230 60 IP20 14 396x321x295
SICOLAB 025 mini 0.42 49 0.27 1.3 230 60 IP20 30.9 15.6×12.6×11.6
SICOLAB 038 mini 20 52 0,35 4,1 115 50 IP20 20 396x321x295
SICOLAB 038 mini 0.71 52 0.35 4.1 115 50 IP20 44.1 15.6×12.6×11.6
SICOLAB 038 mini 24 52 0,34 1,6 230 60 IP20 16 396x321x295
SICOLAB 038 mini 0.85 52 0.34 1.6 230 60 IP20 35.3 15.6×12.6×11.6
SICOLAB 038 mini 24 53 0,38 3,2 115 60 IP20 20 396x321x295
SICOLAB 038 mini 0.85 53 0.38 3.2 115 60 IP20 44.1 15.6×12.6×11.6
SICOLAB 038 mini 20 50 0,34 1,8 230 50 IP20 16 396x321x295
SICOLAB 038 mini 0.71 50 0.34 1.8 230 50 IP20 35.3 15.6×12.6×11.6
SICOLAB 062 mini 48 54 0,58 5,7 115 60 IP20 20 396x321x295
SICOLAB 062 mini 1.7 54 0.58 5.7 115 60 IP20 44.1 15.6×12.6×11.6
SICOLAB 062 mini 36 51 0,44 2,1 230 50 IP20 20 396x321x295
SICOLAB 062 mini 1.27 51 0.44 2.1 230 50 IP20 44.1 15.6×12.6×11.6
