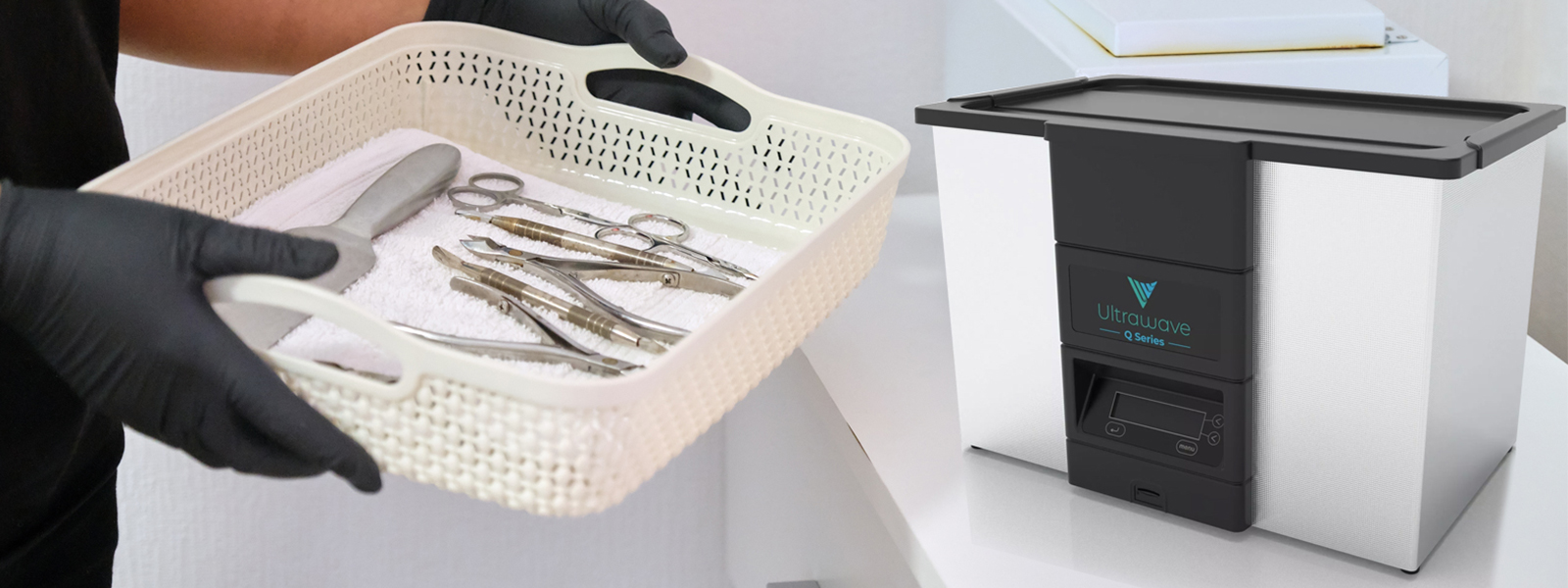

Ultrawave Q.Series
Benchtop ultrasonic baths
Special features:
- Frequency Leap Technology
- menu driven, accurate process control
- Degas mode
“Outstanding ultrasonic cleaning performance with digital validation for professional environments”
Ultrawave’s Q-Series is operated with an easy to use digital panel for accurate cycle parameter control and effective cleaning performance for all applications.
Available from 4.5 to 25L, the Q-Series allows digital traceability of cycle number, time and temperature to be stored onto your PC through its integral data logger.
Incorporating Frequency Leap Technology, the Q-Series ultrasonic baths offer outstanding performance for use in scientific and laboratory applications, cleaning of instruments in medical device manufacturers, chiropody, veterinary and many other professional environments.
Frequency Leap Technology
Using Ultrawave’s advanced software, Frequency Leap creates a pseudo-random leaping action between a wider frequency range. This reduces the standing wave to give improved cleaning performance time after time.
Features of Frequency Leap Technology
- Reduced ultrasonic dead spots and standing waves
- Homogenous cavitational activity throughout the tank means a more consistent cleaning action
- Faster, effective and more efficient results
Picture A illustrates hot and cold spots from a foil ablation test using fixed frequency
Picture B shows a more consistent, homogenous cavitational activity generated by Frequency Leap Technology
1. Digital LCD Control panel
- Menu driven
- Timer 0-99mins
- Temp up to 70ºC
- Degas mode
2. Frequency Leap
- Homogenous & consistent ultrasonic activity
3. Drain outlet
- Allows easy tank drainag
4.Fluid level sensor
- Protects the ultrasonic transducers
5. Memory card datalogger
- Digital cycle validation
6. Stainless steel basket
- Supplied with every machine
7. ABS plastic lid
- Supplied with every machine
Ultrawave are:
- ISO9001 compliant
- ISO13485 compliant
- UK manufacturer
After Sales Service
- 1 year warranty
Full service and maintenance packages available
Also available
- Ultrasonic detergents
- Lids & baskets
- HTM compliant ultrasonic cleaners
- Industrial ultrasonic cleaners
- Customised ultrasonic systems
- Submersible transducers & generators
- Sub-contract cleaning
Model | Capacity(litres) | External Tank
Dimensions (mm) |
Internal Tank)
Dimensions (mm) |
Basket
Dimensions (mm) |
Ultrasonic
Power (W) |
Heater
Power (W) |
---|---|---|---|---|---|---|
QS3 | 2.5 | 285 x 185 x 265 | 240 x 140 x 100 | 220 x 125 x 40 | 50 | 150 |
QS4 | 3.75 | 285 x 185 x 265 | 240 x 140 x 150 | 215 x 120 x 90 | 50 | 150 |
QS5 | 4.5 | 345 x 200 x 265 | 300 x 150 x 150 | 275 x 125 x 90 | 100 | 150 |
QS10 | 9.5 | 550 x 180 x 265 | 500 x 140 x 150 | 460 x 110 x 90 | 200 | 250 |
QS12 | 2.5 | 345 x 285 x 365 | 295 x 245 x 200 | 265 x 215 x 140 | 200 | 300 |
QS18 | 17.5 | 375 x 345 x 365 | 330 x 300 x 200 | 285 x 260 x 140 | 300 | 450 |
QS25 | 25.0 | 550 x 345 x 365 | 500 x 300 x 200 | 470 x 270 x 140 | 400 | 650 |
