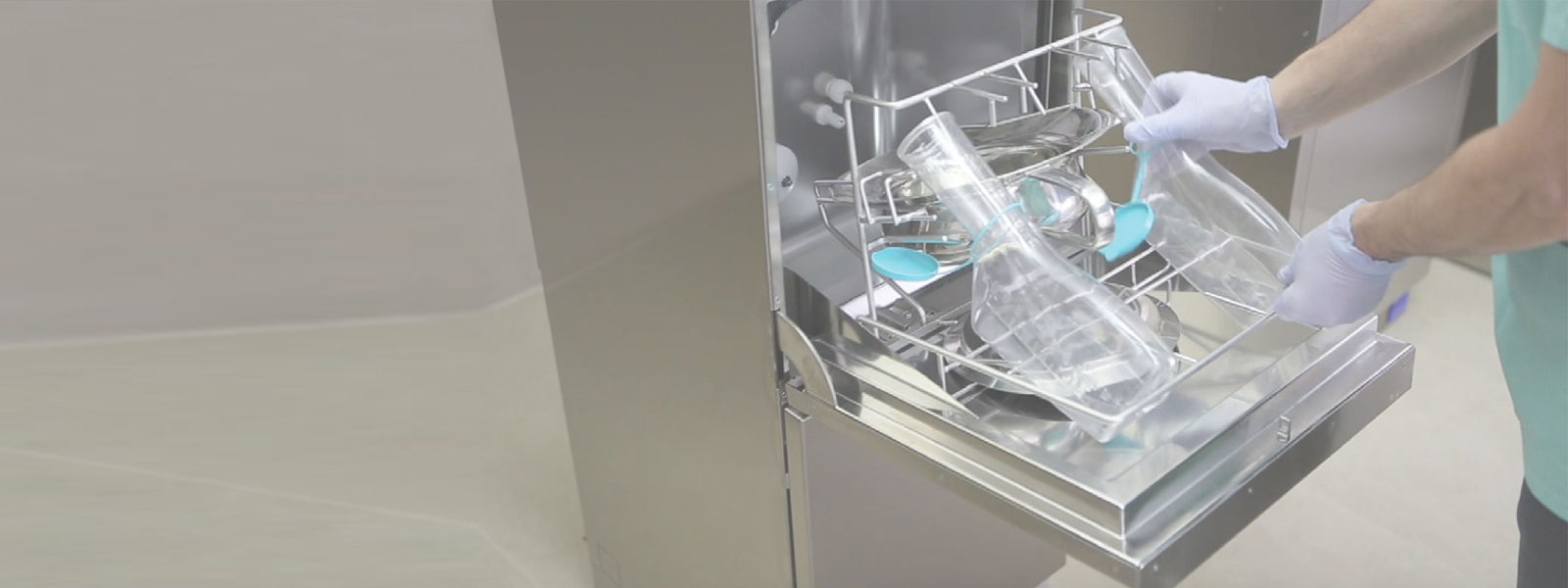

Malmet ES-D Bedpan/Urinal Bottle Washer Disinfector range is the most efficient and effective method of washing and disinfecting bedpans and urinal bottles. Independently micro-tested, Malmet ES-D devices are proven to inactivate organisms (bacteria and viruses) generally found in bedpans and urinal bottles.

The detergent wash ensures that faeces etc are properly removed before the final steam disinfection, ensuring efficacy to the highest relevant Australian and ISO standards. Also, designed with the environment in mind, the ES-D range of products has one of the lowest energy usage rates in the industry.

  • Low water and power consumption
  • Standard universal rack will also accept bariatric slipper pan
  • Infection Control: Microbiologically tested by an independent NATA certified laboratory
  • Simple controls, easy to operate
  • Disinfection to higher AO 600 level as recommended by ISO 15883
  • Available in 240V 10A and 240V 20A
  • Compliant to relevant electrical safety, Watermark standards
  • Large capacity: 1 bedpan and 2 urinal bottles per cycle
  • Detergent cycle
  • Hands-free operation to minimise infection control risk
  • Steam disinfection with inbuilt steam generator – no external hot water supply required
  • No venting required
  • Malmet Door Obstruction Feature – this is factory set to 12 Nm ±10%; causing the door to re-open when an obstruction is detected. This is designed to protect the integrity of the device and the articles within.

Models Available:

Product Code Model No Description Average Cycle Times Power
Consumption		 Water Consumption
Cold Water Only
91-1002 ES915S-D Malmet Bedpan/Urinal Bottle Washer Disinfector
(S Trap, 1 Phase 20 Amp)		 5.30 min0 .300kwh 36 litres
91-1007 ES915P-D Malmet Bedpan/Urinal Bottle Washer Disinfector
(P Trap, 1 Phase 20 Amp)		 5.30 min 0.300kwh 36 litres
91-1022 ES935S-D Malmet Bedpan/Urinal Bottle Washer Disinfector
(S Trap, 1 Phase 10 Amp)		 7.50 min 0.236kwh 36 litres
91-1027 ES935P-D Malmet Bedpan/Urinal Bottle Washer Disinfector
(P Trap, 1 Phase 10 Amp)		 7.50 min 0.236kwh 36 litres

Detergent

Product Code  Description Volume
81-9071SP PK 4 – Detergent Malmet 4 x 5 Litres

Specification Table

Dimensions: 595 mm W x 660 mm D x 1305 H
Power Input: 240V Single Phase @ 10 Amp or 20 Amp 50 Hz
Power Consumption: 20 Amp – 0.300 kwh, 10 Amp – 0.236 kwh
Water Inlet: GB 3/4 Male
Water Supply 5 – 25°C @ 100 – 400kpa Nominal Flow Rate 10L/Min
Concentration of multivent cations:
(Water Hardness)		 2.5 mmol/l of CaCO3
Soil Line: 100 mm ‘S’ or ‘P’ Trap
Shipping Weight: 110 kg
Chamber Volume: 43 L
Capacity: 1 x bedpan & lid & 2 Urinal bottles OR
1 x commode bowl & lid & 2 urinal bottles OR
1 x small or bariatric slipper pan & lid & 2 urinal bottles
Detergent: 5 Litre Product Code #81-9071SP
Detergent Dosage: 30ml
Detergent Specifications: Poisons Schedule: 6
Dangerous Goods Class: 8, Hazchem Code: 2R
