The high performance compact sterilizer that puts you one step ahead
Finding the right sterilizer for your application is crucial. Performance, ease of use and reliability are essential for sustaining maximum productivity.

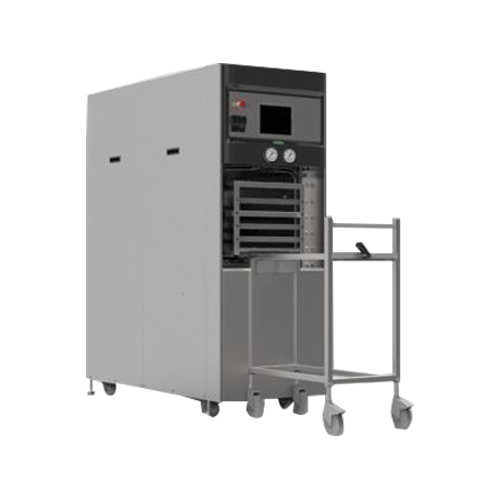

Series 1 sterilizers from bmm weston are designed to deliver. Ideal for a variety of applications with chamber sizes from 180 – 340 litres, they offer ease of operation with colour touch-screen controls and automatic doors.
Combining comprehensive functionality with high specification and premium engineering synonymous with BMM Weston. Series 1 is the number one choice for todays demanding sterilizing environments.
The high performance compact sterilizer that puts you one step ahead
Finding the right sterilizer for your application is crucial. Performance, ease of use and reliability are essential for sustaining maximum productivity.
Series 1 sterilizers from bmm weston are designed to deliver. Ideal for a variety of applications with chamber sizes from 180 – 340 litres, they offer ease of operation with colour touch-screen controls and automatic doors.
Combining comprehensive functionality with high specification and premium engineering synonymous with BMM Weston. Series 1 is the number one choice for todays demanding sterilizing environments.
The high performance compact sterilizer that puts you one step ahead
Finding the right sterilizer for your application is crucial. Performance, ease of use and reliability are essential for sustaining maximum productivity.
Series 1 sterilizers from bmm weston are designed to deliver. Ideal for a variety of applications with chamber sizes from 180 – 340 litres, they offer ease of operation with colour touch-screen controls and automatic doors.
Combining comprehensive functionality with high specification and premium engineering synonymous with BMM Weston. Series 1 is the number one choice for todays demanding sterilizing environments.
Key Features
The Series 1 range comprises single or double-ended models with 500 x 500mm chamber sections.
The range includes models configurable for the following applications:
Typical Porous Load Cycle

Control panel
The ergonomically designed Series 1 control panel incorporates the following user-friendly controls and functions:
Control panel
The ergonomically designed Series 1 control panel incorporates the following user-friendly controls and functions:
Other Features
Other Features
Technical Data
Porous Load Sterilizer Model No. | Laboratory Sterilizer Model No. | STU Capacity (600 x 300 x 300mm) | Volume (litres) | Chamber size (w x h x d mm) | Horizontal/ Vertical Door | Single Ended | Pass through (double door) | Barrier seal available | Integral steam generator available | Overall width & height (mm) | Overall length (mm) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Series | P106 | L106 | 2 | 160 | 350x670x680 | V | ![]() |
![]() |
![]() |
![]() |
600×1970 | 1100 |
P108 | L108 | 3 | 230 | 350x670x980 | V | ![]() |
![]() |
![]() |
![]() |
600×1970 | 1400 | |
P106D | P106D | 2 | 160 | 350x670x680 | V | ![]() |
![]() |
![]() |
![]() |
900×1970 | 1000 | |
P108D | L108D | 3 | 230 | 350x670x980 | V | ![]() |
![]() |
![]() |
![]() |
900×1970 | 1300 | |
P110 | L110D | 4 | 300 | 350x670x1280 | V | ![]() |
![]() |
![]() |
![]() |
900×1970 | 1600 | |
Series | P210 | L210 | 4 | 370 | 660x700x800 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 1450 |
P215 | L215 | 6 | 485 | 660x700x1050 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 1700 | |
P221 | L221 | 8 | 600 | 660x700x1300 | V | ![]() |
![]() |
![]() |
![]() |
900×1970 | 1950 | |
P228 | L228 | 10 | 715 | 660x700x1550 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 2200 | |
P232 | L232 | 12 | 830 | 660x700x1800 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 2450 | |
P210D | L210D | 6 | 480 | 660x700x1045 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 1415 | |
P215D | L215D | 8 | 610 | 660x700x1325 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 1695 | |
P221D | L221D | 10 | 740 | 660x700x1605 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 1975 | |
P228D | L228D | 12 | 870 | 660x700x1885 | V | ![]() |
![]() |
![]() |
![]() |
1200×1905 | 2255 | |
Series | P314 | L314 | 6 | 550 | 660x1050x800 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 1440 |
P321 | L321 | 9 | 725 | 660x1050x1050 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 1690 | |
P328 | L328 | 12 | 900 | 660x1050x1300 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 1940 | |
P332 | L332 | 15 | 1075 | 660x1050x1550 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 2190 | |
P338 | L338 | 15 | 1250 | 660x1050x1800 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 2440 | |
P342 | L342 | 18 | 1420 | 660x1050x2050 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 2690 | |
P321D | L321D | 9 | 725 | 660x1050x1045 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 1445 | |
P328D | L328D | 12 | 920 | 660x1050x1325 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 1695 | |
P332D | L332D | 15 | 1110 | 660x1050x1605 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 1945 | |
P338D | L338D | 18 | 1305 | 660x1050x1885 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 2195 | |
P342D | L342D | 21 | 1500 | 660x1050x2165 | H | ![]() |
![]() |
![]() |
![]() |
1600×1905 | 2445 | |
Series | P440 | L440 | 12 | 1070 | 680x1570x1000 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 2040 |
P450 | L450 | 16 | 1410 | 680x1570x1320 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 2360 | |
P460 | L460 | 20 | 1750 | 680x1570x1640 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 2680 | |
P470 | L470 | 24 | 2090 | 680x1570x1960 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 3000 | |
P440D | L440D | 12 | 1290 | 680x1570x1210 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 1750 | |
P450D | L450D | 16 | 1630 | 680x1570x1530 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 2070 | |
P460D | L460D | 20 | 1980 | 680x1570x1850 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 2390 | |
P470D | L470D | 24 | 2320 | 680x1570x2170 | H | ![]() |
![]() |
![]() |
![]() |
2100×1930 | 2710 | |
Series | P555 | L555 | 16 | 1660 | 900x1400x1320 | H | ![]() |
![]() |
![]() |
![]() |
2500×1750 | 1590 |
P570 | L570 | 20 | 2070 | 900x1400x1640 | H | ![]() |
![]() |
![]() |
![]() |
2500×175 | 1910 | |
P585 | L585 | 24 | 2470 | 900x1400x1960 | H | ![]() |
![]() |
![]() |
![]() |
2500×175 | 2230 | |
P5100 | L5100 | 28 | 2870 | 900x1400x2280 | H | ![]() |
![]() |
![]() |
![]() |
2500×175 | 2550 | |
P555D | L555D | 12 | 1520 | 900x1400x1210 | H | ![]() |
![]() |
![]() |
![]() |
2500×1750 | 1750 | |
P570D | L570D | 16 | 1930 | 900x1400x1530 | H | ![]() |
![]() |
![]() |
![]() |
2500×1750 | 2070 | |
P585D | L585D | 20 | 2330 | 900x1400x1850 | H | ![]() |
![]() |
![]() |
![]() |
2500×1750 | 2390 | |
P5100D | L5100D | 24 | 2730 | 900x1400x2170 | H | ![]() |
![]() |
![]() |
![]() |
2500×1750 | 2710 |
