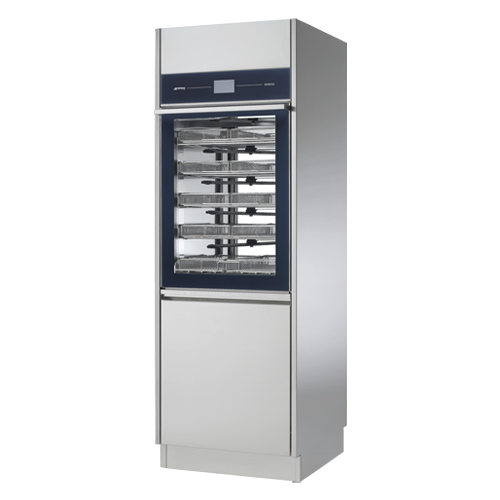

SMEG WD6010

10 DIN BASKETS CAPACITY with a COMPACT FOOTPRINT

BMSS-washer-disinfector 6010-

BMSS-washer-disinfector 6010

TECHNICAL FEATURES 1 / 2

  • EXTERNAL COATING IN STAINLESS STEEL AISI 304

  • WASH CHAMBER IN STAINLESS STEEL AISI 316L

  • 12 DIN BASKETS MAXIMUM CAPACITY

  • 2 SPRAY ARMS, ONE ON THE TOP AND ON THE BOTTOM OF THE CHAMBER

  • WASH CHAMBER DIMENSIONS 546 x 620 x 690 (L X P X H)

  • WASHING UP TO 95°C–THERMAL DISINFECTION

  • TOUCH SCREEN DISPLAY WITH TEXT IN SEVERAL LANGUAGES

  • ELECTRONIC PROGRAMMING:

    • 20PRE-SET + 20CUSTOMER FREE PROGRAMS
  • SELF DISINFECTION PROGRAM

  • PASSWORD PROTECTED FUNCTIONS

  • PERISTALTIC PUMPFOR LIQUID DETERGENT

  • PERISTALTIC PUMP FOR LIQUID NEUTRALISER

  • UP TO 4DOSING PUMPS INTEGRATED IN THE MACHINE

TECHNICAL FEATURES 2 / 2

BMSS-washer-disinfector 6010 technical feature

  • TANK LEVEL SENSOR FOR EACH DETERGENT

  • 220 m3/h HIGH EFFIENCY DRYERwith HEPA FILTER

  • COLD, WARMAND DEMI WATER CONNECTIONS

  • 3RECIRCULATION WATER FILTERS

  • DOOR LOCKED DURING CYCLE IN PROGRESS

  • DOORS INTERLOCKED FOR AVOIDING CROSS CONTAMINATION

  • SINGLE DOOR VERSION AVAILABLE

  • USB ANDRS232 CONNECTION FOR CYCLES LOG DOWNLOAD

  • PANEL PRINTER AVAILABLE ON BOTH SIDES

  • DRAIN MANAGEMENT:

    • SEPARATION VALVE
    • DRAIN TEMPERATURE DECREASING
  • FEATURES NOT AVAILABLE:

    • POWDER DETERGENT DISPENSER
    • INTEGRATED WATER SOFTENER

OPTIONALS

BMSS-washer-disinfector 6010 OPTIONALS

  • COLD WATER PRE-HEATING TANK

  • DEMI WATER PRE-HEATING TANK

  • WASH CAMBER LIGHT

  • HIGH EFFICENCY STEAM CONDENSER

  • WALL DRAIN PUMP

  • CHAMBER STEAM HEATING ELEMENT

  • PERFECT WASHING SYSTEM (CONDUCTIVITY SENSOR)

  • ETHERNET CONNECTIVITY FOR TRACE ABILITY AND SERVICE

NEW RACK CONCEPT

  • DOOR DESIGNED FOR SUPPORTING A FULLY LOADED RACK

  • SAFETY BLOCKING SYSTEM TO PREVENT THE RACK FALLING FROM THE DOOR

  • FLEXIBLE AND MODULAR SYSTEM RACK

BMSS-washer-disinfector 6010 NEW RACK

BMSS-washer-disinfector 6010 NEW RACK CONCEPT

CSK1010 -10 DIN RACK

BMSS-washer-disinfector-CSK1010--10-DIN-RACK

  • Max. capacity10 DIN baskets250 x 480 (max. 260 x 480)

  • Each level is washed by a dedicated spray arm

  • First level is washed by a chamber bottom spray arm

CSK1210FLEX -FLEXIBLE 12 DIN RACK

CSK1210FLEX -FLEXIBLE 12 DIN RACK

  • Max. capacity 12 DIN baskets 250 x 480 (max. 260 x 480) 4 levels are removable

  • Each level is washed by a dedicated spray arm

  • First level is washed by a chamber bottom spray arm

  • Last level is washed by a chamber top spray arm

CSK1210FLEX -FLEXIBLE 12 DIN RACKS

CSK1210UNIV -FLEXIBLE 12 DIN RACK

CSK1210UNIV -FLEXIBLE 12 DIN RACK

  • Max. capacity 12 DIN baskets 250 x 480 (max. 260 x 480)

  • Possibility of installing up to 4 additional levels

  • Rack dedicated to specific supports

SZ1010 –OP SHOES SUPPORT

SZ1010 –OP SHOES SUPPORT

  • OP shoes support. Capacity: 40 clogs

  • Possibility of installing up 2 SZ1010 supports each rack

SZ1010 –OP SHOES SUPPORTS

SCDIN10 –DIN CONTAINER SUPPORT

SCDIN10 –DIN CONTAINER SUPPORTSCDIN10 –DIN CONTAINER SUPPORTS

  • DIN container (600 x 300 x 160) support. Capacity: 1 container + 1 lid

  • Possibility of installing up 2 SCDIN10 supports each rack

SCDIN10 –DIN CONTAINER SUPPORT DATA

BMSS SCDIN10 –DIN CONTAINER SUPPORT
