Scope-Store PT +

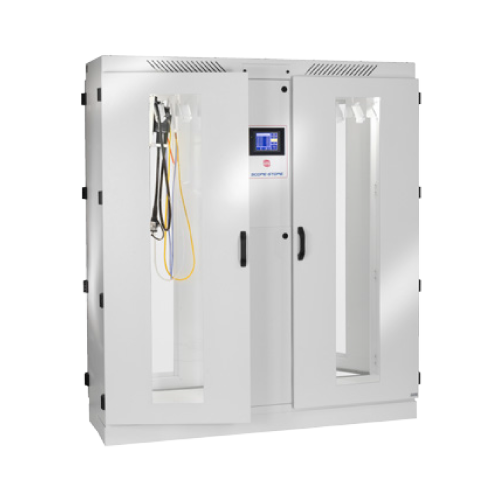

The Scope-Store PT + is the pass-through range of endoscope drying and storage cabinets from LTE Scientific and further enhances the popular Scope-Store+ family of products. They are available as either 5 or 10-scope vertical hanging or 10-scope shelf loaded configurations.
Scope-Store PT+ is designed to be installed through a wall between the clean and dirty areas of endoscope reprocessing suites. The interlocked doors ensure the correct flow of scopes and prevent both doors from being opened at the same time.
As with the single entry variants, Scope-Store PT+ provides enhanced control and traceability and is validated to store endoscopes for up to 30 days.
The self-contained double filtration system delivers HEPA filtered air through the cabinet continually and also feeds 0.2μ filtered air via a compressor to each of the scope positions. These conditions inhibit the growth of such micro-organisms as Pseudomonas sp. and Acineterbacter sp.
Scope-Store PT+ incorporates the latest in touchscreen technology which allows for unparalleled security and monitoring of scope conditions and cycle status.
Access to the scopes is achieved by an individual PIN or barcode meaning that the system records who loads/ unloads each endoscope. Similarly all endoscope ID’s are stored in the control system memory and can be accessed either via an on-screen menu or a barcode scan.
Air-flow conditions are monitored for each endoscope and the end-of-cycle report records average and total air volume delivered through each endoscope.
An intuitive display gives users an easy to understand red/amber/green status for each scope position and clearly indicates any alarm conditions which may occur such as blockages, power outage, maximum storage time exceeded etc.
Endoscopes cannot be unloaded to the ‘clean’ side unless they have achieved a successful cycle. All models are supplied with touchscreens on both sides plus a printer on the ‘unload’ or ‘clean’ side. Cycle data is stored on the internal flash card as standard. As an option, data can be downloaded to a PC or on to a track and trace system.
No-cost options such as opaque door panels or solid doors are available on request.
Scope-Store PT+ is designed to be installed through a wall between the clean and dirty areas of endoscope reprocessing suites. The interlocked doors ensure the correct flow of scopes and prevent both doors from being opened at the same time.
As with the single entry variants, Scope-Store PT+ provides enhanced control and traceability and is validated to store endoscopes for up to 30 days.
The self-contained double filtration system delivers HEPA filtered air through the cabinet continually and also feeds 0.2μ filtered air via a compressor to each of the scope positions. These conditions inhibit the growth of such micro-organisms as Pseudomonas sp. and Acineterbacter sp.
Scope-Store PT+ incorporates the latest in touchscreen technology which allows for unparalleled security and monitoring of scope conditions and cycle status.
Access to the scopes is achieved by an individual PIN or barcode meaning that the system records who loads/ unloads each endoscope. Similarly all endoscope ID’s are stored in the control system memory and can be accessed either via an on-screen menu or a barcode scan.
Air-flow conditions are monitored for each endoscope and the end-of-cycle report records average and total air volume delivered through each endoscope.
An intuitive display gives users an easy to understand red/amber/green status for each scope position and clearly indicates any alarm conditions which may occur such as blockages, power outage, maximum storage time exceeded etc.
Endoscopes cannot be unloaded to the ‘clean’ side unless they have achieved a successful cycle. All models are supplied with touchscreens on both sides plus a printer on the ‘unload’ or ‘clean’ side. Cycle data is stored on the internal flash card as standard. As an option, data can be downloaded to a PC or on to a track and trace system.
No-cost options such as opaque door panels or solid doors are available on request.
Technical Information
Scope Store PT+ Pass-Through Models
Model | Scope-Store V5 PT+ | Scope-Store V10 PT+ | Scope-Store S10 PT+ |
---|---|---|---|
Catalogue No. | ED/SST/2V5 | ED/SST/2V10 | ED/SST/2S10 |
Scope Capacity | 5 | 10 (2 compartments) | 10 |
Scope Arrangement | Vertical Hangers | Shelf Loaded | |
Internal Dims, HWD, mm | 1700 x 575 x 395 | 1700 x 575 x 395 (per compartment) | 1700 x 565 x 545 |
External Dims, HWD, mm | 1890 x 910 x 515 | 1890 x 1560x 515 | 1890 x 900 x 665 |
Hanger Details | Scope holders with pull-out hanging rails | N/A | |
Shelf Details | N/A | Slide-out stainless steel shelves. Including stainless steel baskets |
|
Control System | Colour Touchscreen to both sides with individual PIN protection | ||
Printer | Thermal Printer Included to unloading side | ||
Internal Data Archiving | Included | ||
External Fascia Trim | Included | ||
Internal Lighting | Included | ||
Glass Door Panel | Included | ||
Air Delivery System | HEPA filtered air though chamber and internal endoscope channels. Fan and compressor included. |
