Washer Disinfector With Drying System, En15883 Approved

Basic Line – Washer Disinfector 90 Cm With Drying System

Washer Disinfector With Drying System, En15883 Approved

Basic Line – Washer Disinfector 90 Cm With Drying System

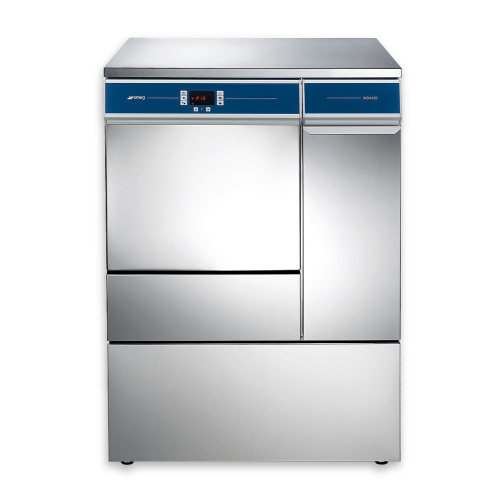

The SMEG WD 4190 95 °C antibacterial thermal disinfection ensures maximum disinfection. Forced hot-air drying system with HEPA air filter, incorporated detergent basket and water softener, high quality stainless steel, and independent washing levels through telescopic guides make the WD4190 a highly efficient washer disinfector.

Healthcare Solutions - Babich Maintenance & Steriliser Services
Healthcare Solutions - Babich Maintenance & Steriliser Services
  • Washing up to 95 °C – antibacterial thermal disinfection
  • Programs: 9 default + 6 custom

  • Microprocessor programmable electronic control

  • Serial port RS232 for connection to external printer or PC
  • Forced hot air drying system with HEPA air filter
  • High efficiency steam condenser Ecoslim, with cold water injection
  • Peristaltic pump for liquid detergent and level sensor
  • Peristaltic pump for acid liquid neutralizer and level sensor

  • Possibility of installing 1 additional peristaltic pump
  • Washing chamber and internal door in stainless steel AISI 316L
  • External panels in stainless steel AISI 304
  • Detergent cabinet made of AISI 304 stainless steel 4 x 5 liters tanks
  • External dimensions LxDxH: 900 x 600 x 850 mm
  • Internal working dimensions LxDxH: 525 x 490 x 570 mm
  • Incorporated water softener with salt sensor
  • Cold water and demineralized water connections
  • Electronic door lock system for user safety
  • Electrical connection: 3/N/PE 400 V – 50 Hz – 7 kW max
  • Single-phase version available: 1/N/PE 230 V – 50 Hz – 3,3 kW max (cod. WD4190-1)

  • Three-phase without neutral version available: 3/PE 400 V – 50 Hz – 7 kW max (cod. WD4190-3)

  • 60 Hz version available
  • Without trolleys
  • n. 2 indipendentent washing levels through telescopic guides available (cod. WD4190R)
  • Washing up to 95 °C – antibacterial thermal disinfection
  • Programs: 9 default + 6 custom
  • Microprocessor programmable electronic control
  • Serial port RS232 for connection to external printer or PC
  • Forced hot air drying system with HEPA air filter
  • High efficiency steam condenser Ecoslim, with cold water injection
  • Peristaltic pump for liquid detergent and level sensor
  • Peristaltic pump for acid liquid neutralizer and level sensor
  • Possibility of installing 1 additional peristaltic pump
  • Washing chamber and internal door in stainless steel AISI 316L
  • External panels in stainless steel AISI 304
  • Detergent cabinet made of AISI 304 stainless steel 4 x 5 liters tanks
  • External dimensions LxDxH: 900 x 600 x 850 mm
  • Internal working dimensions LxDxH: 525 x 490 x 570 mm
  • Incorporated water softener with salt sensor
  • Cold water and demineralized water connections
  • Electronic door lock system for user safety
  • Electrical connection: 3/N/PE 400 V – 50 Hz – 7 kW max
  • Single-phase version available: 1/N/PE 230 V – 50 Hz – 3,3 kW max (cod. WD4190-1)

  • Three-phase without neutral version available: 3/PE 400 V – 50 Hz – 7 kW max (cod. WD4190-3)

  • 60 Hz version available
  • Without trolleys
  • n. 2 indipendentent washing levels through telescopic guides available (cod. WD4190R)
