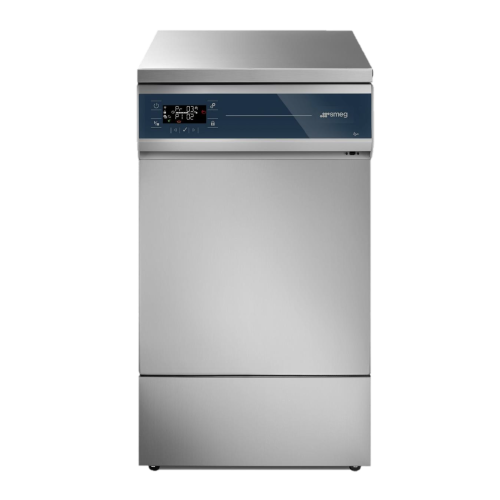

Thermal Washer Disinfector – 45 Cm
Thermal Washer Disinfector – 45 Cm
Thermo disinfector for cleaning, rinsing and thermal disinfection of invasive and non-invasive reusable medical devices
Washing up to 95 °C – antibacterial thermal disinfection
User interface with touch colour display, simultaneous display on three independent levels of the operating parameters (program, progress status, temperature/remaining time/Ao/peristaltic pumps dosage, etc.)
Display front panel in glass with LCD display and USB frontal port for connectivity
Provided with a visual and acoustic communication system for operativity and alarms
Programs available: 20 default + 20 custom + 3 for service
Microprocessor electronic control provided with 3 safety levels for parameters editing and adjusting
Internal memory for cycles, parameters and alarms datalogging
Provided with software to connect the device and monitoring cycles and parameters
RS232 port (printer connection) optional
Ready to Wi-Fi and Bluetooth connection
- Washing chamber and internal door in AISI 316L stainless steel
External panels made of AISI 304 stainless steel
Possibility of inserting external probes for validation through a standard through hole with a max diameter of 9.5 mm (3/8″)
Active thermodynamic drying
High efficiency steam condenser Ecoslim, with cold water injection
Peristaltic dosing pump for liquid detergent, with level sensor and dosing control (flow switch)
Peristaltic dosing pump for acid liquid neutraliser, with level sensor – dosing control (flow switch) optional
Incorporated high efficiency water softener with salt sensor
Communication via display of the progressive status of the washing cycle
- Possibility to cool the drain water up to 65°C
Electronic door lock system for user safety
Cold water and demineralised water connections as default configuration
Electrical connection: 1/N/PE 230 V – 50 Hz – 2,8 kW max
Schuko plug 16 A – 250 V included
Internal working dimensions WxDxH: 370 x 480 x 570 mm
External dimensions WxDxH: 450 x 620 x 830 mm
60 Hz version available
Chamber configuration with rails
Upper and lower trolleys D-CS1 and D-CS2 included
Complies with MDR 2017/745/UE and ISO/EN 15883
Machine optionals
Machine optionals
FLUX4060 – DOSING CONTROL FOR ADDITIONAL PERISTALTIC PUMPS
PAD1 – BOOSTER PUMP FOR NON-PRESSURE DEMINERALISED WATER (TANK H>85 CM)
PAD2R – PAD2 RELAY KIT
PAD2X – ST. STEEL BOOSTER PUMP FOR NON-PRESSURE DEMINERALISED WATER (FLOOR TANK)
- TOP45I – BUILT-IN TOP 45 CM
WD-LANI2 – COMMUNICATION LAN CARD
WD-PRINTE2 – EXTERNAL PRINTER
